Robotic Packaging Automation
Modular High-Speed Robotic Pick and Place Systems for Packaging Lines
- High-speed robotic picking
- Vision-guided precision
- Flexible product handling
- Seamless line integration
Flexible Robotic Pick and Place Automation for Complex Packaging
Tekpak designs and manufactures advanced robotic pick and place packaging systems capable of handling a wide range of products with speed, precision, and reliability. From simple point-to-point movements to complex multi-axis robotic systems, our solutions are engineered to optimise throughput and integrate seamlessly into complete packaging lines.
- Single-axis to multi-axis robotic systems
- Delta robots for high-speed applications
- Vision-guided random product picking
- Integration with cartoners, flow wrappers & case packers
- GMP-compliant system design
- Cleanroom-ready configurations
- 21 CFR Part 11 compliant controls
Explore Our Packaging Automation Solutions
Browse our full range of machinery designed to integrate seamlessly into your packaging line
Trusted by Leading Manufacturers
Real-World Robotic Pick and Place Applications
Flow Wrapped & Unwrapped Blister Packs
High-speed robotic loading into cartoners
Blister Packs
Stacking, nesting, and vision-based inspection integration
Direct Into Pocket
Precision loading into cartoner infeed
Feeding Blisters to Flow Wrapper with Desiccant Sachets
Synchronized multi-product handling
MDI Canister Tray Loader
Automated tray loading and de-nesting
Point To Point – Medical Device
Servo-controlled precision handling
Collator Infeed
High-speed collation into multipacks
On-Edge Flow Packs
Orientation control for efficient flow wrapping
Chocolate Handling
Delicate handling using vacuum and mechanical grippers
Pick and Place Variable Pitch
Flexible pitch loading into flow wrappers
Applications For Pick and Place Robotic Systems:
- High Speed and Complex Motion Control
- Pick and Place using Collation (Accurately Control Pick and Place Positions)
- Pick and Place using Vision Cameras to Accurately Locate, Pick and Place Randomly Arriving Products
- Loading to Flow Wrapper or Cartoner
Robotic Pick and Place System Configurations
Our robotic pick and place machines are available in multiple configurations depending on speed, complexity, and application requirements.
| Model/Series | Application | Typical Example |
|---|---|---|
|
Single-Axis PTP Series |
For picking and placing from one fixed position to another fixed position, where the motion profile at the pick head is a spline curve without vertical trajectory at pick or place points |
Placing a leaflet onto a stack |
|

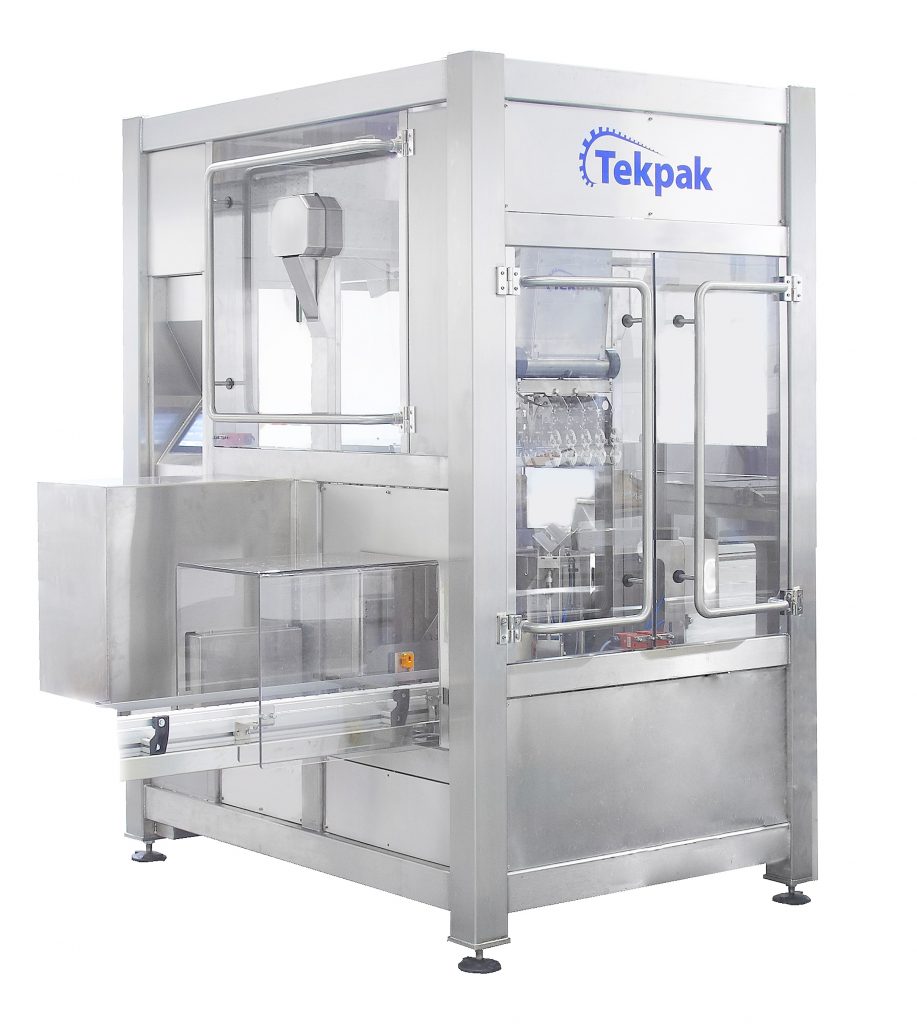

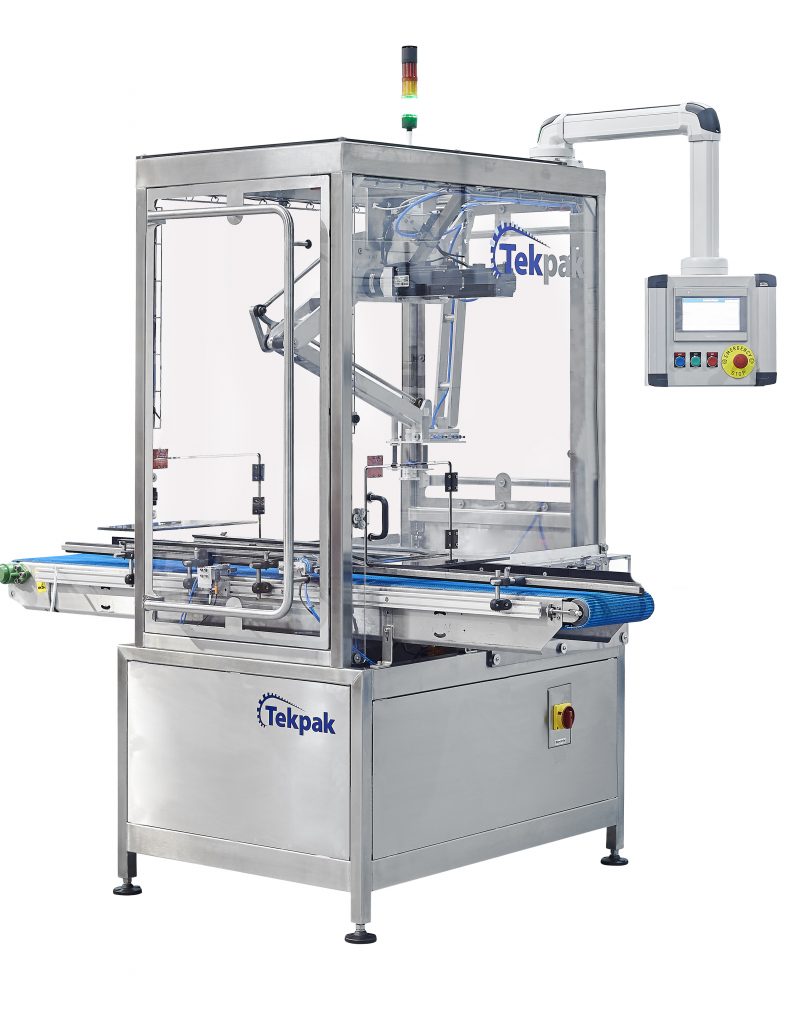

Two-Axis Delta Robot
TD2 Series |
For picking and placing from one fixed position, where the motion profile at the pick head has a vertical trajectory at pick or place points |
Placing products into a carton or case |
|
Three-Axis Delta Robot
TD3 Series |
For picking and placing from moving positions where the motion profile at the pick head moves in x,y and z-axis. For example, loading flow packs into an infeed of a Cartoner or Flow wrappers |
Picking and placing products using Vision guidance |
|
Four-Axis Delta Robot
TD3R Series |
A version of the TD3 Series, three-axis Delta Robot but where the product must also be rotated or turned during the pick cycle. |
Transferring a product through 90 degrees during the pick and place cycle or placing it into a smaller pitch from the pick position |
|
Six -Axis Robot TP6 Series |
Tekpak can integrate OEM Palletisers as part of a complete packaging line, including Design of the full packaging line, Programming of the Palletising Cell and Safety Hardware integration. |
Packing Cases onto Pallets for a Complete End of Line Packaging Solution |
Products Handled by Pick and Place Robots
- Blister Packs

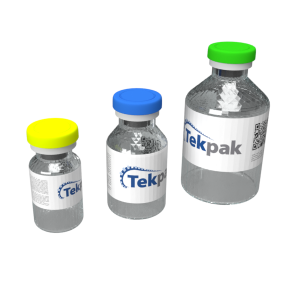

- Vials
- Pill Bottles
- Pre-Filled Syringes
- Metered Dose Inhalers
- Biscuits & baked goods
- Chocolate & confectionery
Robotic Pick and Place Solutions Across Industries
Pharmaceuticals
Precision handling for regulated production
Medical Devices
Accurate placement for sensitive components
Food
High-speed handling for packaged products
Confectionery
Delicate robotic handling for chocolates and baked goods
Veterinary Pharma
Reliable automation for veterinary production
Cosmetics
Flexible handling for varied packaging formats
- GMP Design Features
- Highly Configurable for Most Applications
- Customisable End Effectors (Tekpak proprietary design)
- Stainless Steel Frame Suitable for Pharmaceutical or Food Environments
- Clean Room Version of the Delta Robot Available
- Configurable for 21CFR Part 11 Compliance Including Active Directory, Audit Log and Time Synchronisation
- Control System –Schneider® and Allen Bradley® Available
- Operator Interface – Colour Touchscreen with Intuitive Design
- Innovative Features to Assist with Autonomous Maintenance and TPM
- Size Change using S.M.E.D Philosophy
- Mechanical Adjustments on Robust Screw/Slide with Numeric Indicators and Graduated Scales.
- Size Change & Format Settings Displayed on HMI (Timers, Counters, Electronic Positioning etc)
- Fully Automatic Size Change Versions Available
- Fast, Secure Line Clearance
Robotic Pick and Place Systems - FAQs
A robotic pick and place system is an automated solution that uses robotic arms to pick products and place them accurately into packaging lines, cartons, trays, or conveyors.
These systems are widely used in pharmaceutical, food, medical device, cosmetics, and confectionery industries.
Yes, systems are designed with flexible end effectors and vision systems to handle a wide range of products including blister packs, vials, bottles, and flow-wrapped items.
Yes, robotic pick and place systems are designed to integrate seamlessly with cartoners, flow wrappers, and case packing systems.
Yes, systems can be designed to meet GMP standards and include 21 CFR Part 11 compliant controls for regulated environments.
Speeds depend on the application, but high-speed delta robots can handle hundreds of picks per minute.
Yes, all systems can be tailored based on product type, speed requirements, and line configuration.
